Distance Distance 500m 1550m Infrared module

Abin ƙwatanci

SG -IR1550-5M

Ingancin nesa

≥500m

Hanya

VCSEL

Igiyar ruwa

1550M ± 15nm

Inputer Power

≤21w

Laser guntu Power

2.2w ± 0.2W

Powerarfin Wuta

2.0w ± 0.2W

Kwana na haske

1 ° ~ 30 ° (Ci gaba Zuƙo)

Tabo diamita

30 °, nesa mai tasiri> 500m, Banki tabo diamita

Kusa da kusurwa 30 °, nesa mai tasiri> 80m

Zuƙo lokaci

≤4s (kusa da nesa)

Matakin lafiya Laser

Aji 1

Kuntawa

Rs - 485, TTL232, Gudanar da Manufar

Protecol Sadarwa

Pelo - D, 9600bps (4800bps, 2400bps don zaɓi)

Yanayin aiki

Ci gaba

Rayuwar Ma'aikata

> 30000H

Inputer Power

DC12V ± 10%, 1.5 ± 0 #A

Yawan zafin jiki

- 20 ° C ~ + 55 ° C

Zazzabi mai ajiya

- 20 ° C ~ + 70 ° C

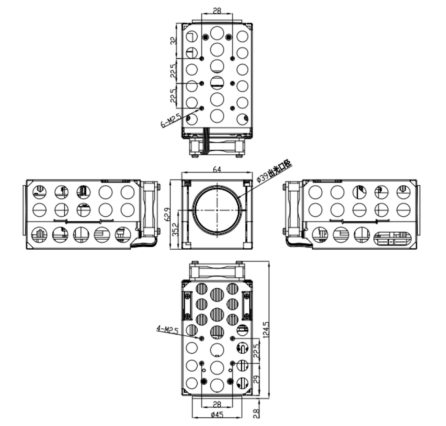

Gwadawa

124.5mm * 63mm

Nauyi

400g
