2MP 60x 1200mm AI ISP Based Ultra Long Range Zoom Starlight Global Shutter Network da MIPI Dual Output Camera Module

Samfura

SG-ZCM2060NMI-OG

Sensor

Sensor Hoto

1/1.7" pixelsShutter Duniya Sensor CMOS

Pixels masu inganci

Kimanin 2.4 megapixel

Lens

Tsawon Hankali

20mm ~ 1200mm, 60x Zuƙowa na gani

Budewa

F2.92~F11.37

Filin Kallo

H: 21.74 ° ° ° ° ° ° 0.37 °, 12.33 ° ° 0.21 °, 24.85 ° ° ° 0.42 °

Rufe Nisan Mayar da hankali

1m ~ 50m (Faɗin ~Tele)

Saurin Zuƙowa

< 10s (Na gani Wide~Tele)

Nisa DORI

(Dan Adam)

Gane

Kula

Gane

Gane

11,893m

4,719m

2,379m

1,189m

Bidiyo

Matsi

H.265/H.264B/H.264M/H.264.H/MJPEG

Iyawar yawo

3 rafi

Ƙaddamarwa

Babban kofe: 50 / 600fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720

Rukunin SUB: 50 / 600FPs @ 704 × 576; 50 / laysfps @ 352 × 288;

Sub rew2: 50 / 600fps @ 1920 × 1280; 50 / laysfps @ 1280 × 720;

50 / 60fps @ 704 × 576

Audio

AAC(8/16kHz) / MP2L2(16kHz)

MIPI Video

50Hz: 50fps @ 2mps @ 1920 × 1280)

60Hz: 60FPs @ 2mp (1920 × 1280)

Cibiyar sadarwa

Ka'idar Sadarwar Sadarwa

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Mai Binciken Yanar Gizo

IE, Edge, Firefox, Chrome

Mai amfani

Har zuwa masu amfani 20, matakin 2: Mai gudanarwa, Mai amfani

Adana

Micro SD/SDHC/SDXC katin (Har zuwa 1TB) ajiya gefen, FTP, NAS

Multicast

Taimako

Haɓaka Firmware

Kawai zai iya haɓaka firmware ta hanyar tashar sadarwa.

Abubuwan Gabaɗaya

Motsi, Tamper, SD Card, Network

IVS

Tripwire, Gano shingen shinge, Kutsawa, Abun Washewa, Mai Sauri

Bambancin manufa

Mutum / Motoci

Rabon S/N

≥55db

Mafi ƙarancin Haske

Launi: 0.05Lux/F2.92; B/W: 0.005Lux/F2.92

Rage Surutu

Rage Hayaniyar 2D/3D/AI

Yanayin Bayyanawa

Mota, Buɗaɗɗen fifiko, fifikon rufewa, Riba fifiko, Manual

Rarraba Bayyanawa

Taimako

Gudun Shutter

1/1 ~ 1/30000s

BLC

Taimako

HLC

Taimako

WDR

Taimako

Farin Ma'auni

Auto, Manual, Cikin gida, Waje, ATW, Sodium fitila, Titin fitila, Halitta, Turawa ɗaya

Rana/Dare

ICR (Auto/Manual)

Yanayin Mayar da hankali

Auto, Manual, Semi Auto, Turawa Daya AF

Lantarki Defog

Taimako

Na gani Defog

Support, 750nm ~ 1100nm tashar ne Optical Defog

Rage Hazari

Taimako

Juyawa

Taimako

EIS

Taimako

Zuƙowa na Dijital

16x

Ikon Waje

2 x TTL; Mai jituwa da SONY VISCA da Pelco Protocol

Interface

4pin Ethernet tashar jiragen ruwa, 6pin Power & UART tashar jiragen ruwa, 5pin Audio tashar jiragen ruwa,

30 pin MIPI

Ka'idar Sadarwa

SONY VISCA, Pelco D/P

Yanayin Aiki

- 30 ° C ~ + 60 ° C / 20% zuwa 80% RH

Yanayin Ajiya

- 40 ° C ~ 70 ° C / 20% zuwa 95% RH

Tushen wutan lantarki

DC 12V

Amfanin Wuta

Ikon tsaye: 5W, Ikon wasanni: 10W

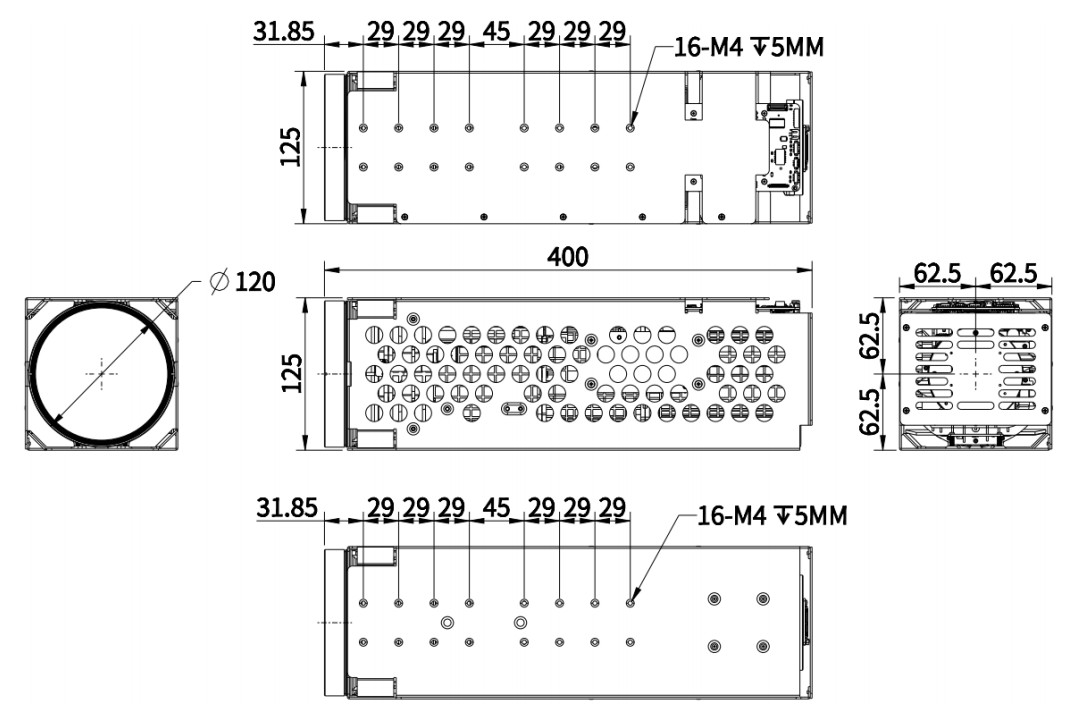

Girma (L*W*H)

400mm*125*125mm

Nauyi

Kimanin 5kg
