1280x1020 Module kyamarar TRAME tare da ruwan tabarau na 30 ~ 180mm

Abin ƙwatanci

SG - TCM12N2 - m30180

Fir firanti

Hoto na hoto

Uncooled vox microbolometer

Ƙuduri

1280 × 1024

Girman pixel

12μm

Kewayon fili

8 ~ 14μ

Raga

@ 25 ℃, f # 1.0

Gilashin madubi

Tsawon Tsawon

30 ~ 160mm ruwa ruwan tabarau

Entical Zoom

6x

Zoom

4x

F Darajar

F1.0 ~ F1.4

Ɗan fov

28.72 ° ° × 23.15 ° 4.89 × 3.91 °

Video

Matsawa

H.265 / H.264B / H.264M / H.264H / MJPEG

Danna

Jpeg

Launin da ke ciki

Tallafawa: farin zafi, baki mai zafi, bakan gizo, Bakanowo, bakan gizo 2, Fusion, Arctic ja, tint

Ƙoramu

Babban ROGE: 25 / 30FPs @ 1280 × 1024, 25 / 30FPs @ 704 × 576

SUB - Stra: 25/9fps @ 704 × 576, 25 / 30fps @ 500 × 240

Hanyar sadarwa

Protecol Computcol

IPV4, IPV6, HTTP, HTTPS, TCP, UDSP, RTCP, USP, SNP, RTP, TTP, RTP, SNP, DNSP, 802.1xx, Bonjour

Abin yarda

Onvif, HTTP API, SDK, GB28181

Max. Gamuwa

20

M

Janar abubuwan da suka faru

Motsi, Tamper, SD Katin SD, cibiyar sadarwa

Ayyukan IVs

Tafiya ta Tripwire, Intrustion Giciye, Abun da aka bari, Fast - Gano, Gano Gidaje, Gano abu, wanda aka rasa, gano wuri, ganowa mai lura da ayyukan, wanda aka rasa, ganowa masu lura da juna, abin lura, ganowa.

Gano Wuta

Goya baya

Kanni

Ethernet

4pin Ethernet Port, 10m / 100m kai - idoption

HD - SDI (Zabi)

1ch HD - SDI

Ƙararrawa cikin / fita

1/1

Audio a cikin / fita

1/1

RS485

Goya baya

Ƙuduri

50Hz: 25F2 @ (1280 × 1024)

Karfin ajiya

Katin SDHC / SDHC Card (har zuwa 1Tb) na ajiya na baki, FTP, Nas

Tushen wutan lantarki

DC 12V, 1A

Yanayin aiki

- 30 ° C ~ + 60 ° C / 20% zuwa 80% RH

Yanayin ajiya

- 40 ° C ~ 70 ° C / 20% zuwa 95% RH

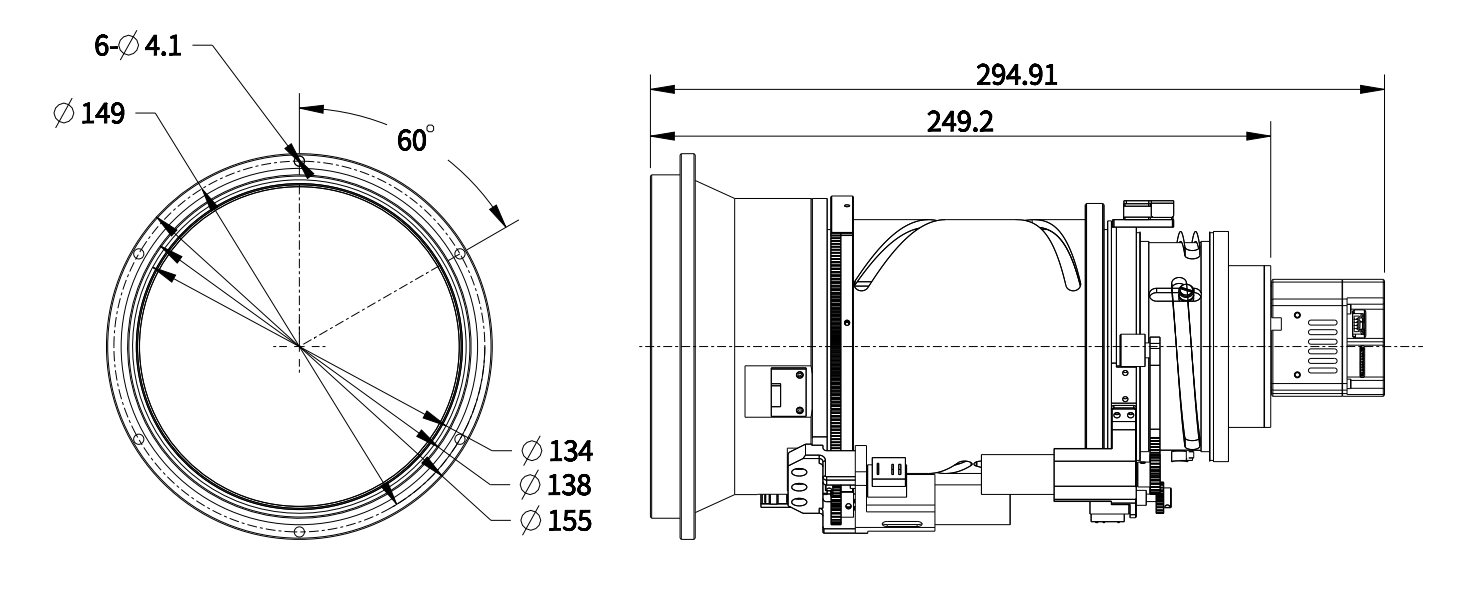

Girma (l * w * h)

Kimanin. 295mm * 155mm * 155mm

Nauyi

Kimanin. 3.2KG
