640x512 Modele na Cajin Cajinan cibiyar sadarwa tare da 25mm (19mm) tsayayyen ruwan tabarau
|
Abin ƙwatanci |
SG - TCM06N2 -25 |
SG - TCM06N2 -19 |
SG - TCM06N2 -13 |
|
|
Fir firanti |
Hoto na hoto |
Uncooled vox microbolometer |
||
|
Ƙuduri |
640 × 512 |
|||
|
Tsarin firam |
50Hz |
|||
|
Pixel filin |
12μm |
|||
|
Kewayon fili |
8 ~ 14μ |
|||
|
Raga |
@ 25 ° C, F # 1.0 |
|||
|
Gilashin madubi |
Shafi |
Dlc |
||
|
Tsawon Tsawon |
25mm |
19mm |
13mm |
|
|
Mika m |
Shugabanci |
Shugabanci |
Shugabanci |
|
|
Zoom |
8x |
8x |
8x |
|
|
F Darajar |
F1.0 |
F1.0 |
F1.0 |
|
|
Ɗan fov |
17.46 ° × 14.04 ° |
22.85 ° × 18.37 ° |
32.91 ° ° 24.59 ° |
|
|
Video |
Matsawa |
H.265 / H.264 / H.264H / H.264B / MJPEG |
||
|
Matsawa na sauti |
AAC / mp2l2 |
|||
|
Danna |
Jpeg |
|||
|
Ƙuduri |
Babban kofe: 50fps @ (1280 × 1024, 1280 × 720, 704 × 480) |
|||
|
Bit kudi bit |
4kbps ~ 40MBPS |
|||
|
Hanyar sadarwa |
Protecol Computcol |
IPV4, IPV6, HTTP, HTTPS, TCP, UDSP, RTCP, USP, SNP, RTP, TTP, RTP, SNP, DNSP, 802.1xx, Bonjour |
||
|
Api |
Onvif, HTTP API, SDK, GB28181 |
|||
|
Tsaro cibiyar sadarwa |
Tabbatarwar mai amfani, IP / Mac tace, Lissafin HTTPS, IEEE 802.1x Ikon Hanyar Hanyar sadarwa |
|||
|
Mai binciken gidan yanar gizo |
IE, baki, Firefox, Chrome |
|||
|
Wadda take amfani |
Har zuwa masu amfani 20, Mataki 2: Administrat, mai amfani |
|||
|
Ajiya |
Katin SDHC / SDHC Card (har zuwa 1Tb) na ajiya na baki, FTP, Nas |
|||
|
Multicast |
Goya baya |
|||
|
M |
Kariyar Perimeter |
Tafiya ta Tripwire, Gicciye na Giciye |
||
|
Binciken Halin |
Abun da aka bari, cire abu, sauri - motsi, gano taron, ganowa, ganowa, ganowa |
|||
|
Aukuwa |
Ganuwa na motsi, yanayin bidiyo, Canjin Audio, Ragewa ta hanyar sadarwa, rikici na IP, ba bisa doka ba, anomal |
|||
|
Gano Wuta |
Goya baya |
|||
|
Kanni |
Ethernet |
4pin Ethernet Port, 10m / 100m kai - idoption |
||
|
Ƙararrawa cikin / fita |
1/1 |
|||
|
Audio a cikin / fita |
1/1 |
|||
|
Gudanarwa |
1x ttl 3.3v (Predca Predcol), 1x Rs485 (Pelco Protocol) (TTL 3.3V Zabi) |
|||
|
Bayyanar bidiyo |
Hanyar sadarwa da cvbs |
|||
|
Launin da ke ciki |
Farin zafi, baƙi mai zafi, fuill, laima, iron ƙarfe 20 za optionsu |
|||
|
Yanayin FFC |
Auto / Manual |
|||
|
Saitin hoto |
Haske, bambanci, kaifi, da kuma amo amo |
|||
|
Osd |
Goya baya |
|||
|
Jefa |
Goya baya |
|||
|
Madubi |
Goya baya |
|||
|
Tushen wutan lantarki |
DC 12V, 1A |
|||
|
Amfani da iko |
≤2.5w |
|||
|
Yanayin aiki |
- 30 ° C ~ + 60 ° C / 20% zuwa 80% RH |
|||
|
Yanayin ajiya |
- 40 ° C ~ 70 ° C / 20% zuwa 95% RH |
|||
|
Yankin Kariya na 1 |
Ip67 |
|||
|

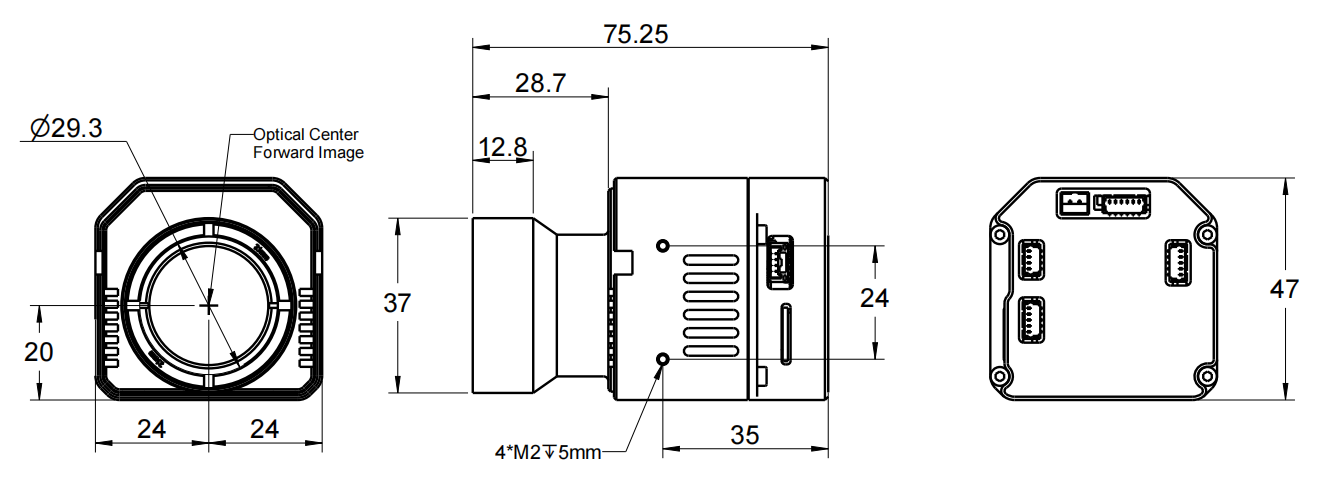

Girma (l * w * h) |
75.3 * 48 * 47mm |
69.3 * 48 * 47mm |
63 * 48 * 47mm |
|
|
Nauyi |
Kimanin. 200g |
Kimanin. 177g |
Kimanin. 156G |
|
Distance Drizri
Target: Girman ɗan Adam shine 1.8m × 0.5m (girman mahimmancin shine 1.4m × 4.0m (girman mahimmancin shi 2.3m); Girman wuta shine 0.13M × 0.13m (girman mahimmancin shine 0.13m).
Gano ganowa, an ƙididdige gane da nesa nesa da keɓaɓɓun nesa game da ka'idojin Johnson.
Abubuwan da aka ba da shawarar nesa na ganowa, fitarwa da ganewa sune kamar haka:
|
Gilashin madubi |
Detect |
Recwan | Ganoy | |||||||
|
Kayan sufuri |
Na ɗan Adam |
Wuta |
Kayan sufuri |
Na ɗan Adam |
Wuta |
Kayan sufuri |
Na ɗan Adam |
Wuta |
||
|
13mm |
1661m (5449ft) |
542M (1778ft) |
94m (308ft) |
415m (1362ft) |
135m (443ft) |
23m (75ft) |
208m (682ft) |
68m (223ft) |
12m (39ft) |
|
|
19mm |
2428m (7966ft) |
792m (2598ft) |
137m (499ft) |
607M (1991ft) |
198m (650ft) |
34m (112ft) |
303m (994ft) |
99m (325ft) |
17m (56ft) |
|
|
25mm |
3194m (10479ft) |
1042m (3419ft) |
181m (594ft) |
799m (2621ft) |
260m (853ft) |
45m (148ft) |
399m (1309ft) |
130m (427ft) |
23m (75ft) |
|
