12um 640x512 fitar da uthput uture girman medule
|
Lambar samfurin |
SG - HTM06UU2 - T9 |
Sg - htm06u2 - t15 |
Sg - htm06u2 - t19 |
SG - HTM06UU2 - T25 |
|
Module na Thermal |
||||
|
Hoto na hoto |
Vox uncooled mai da hankali jirgin sama Arrays |
|||
|
Max. Ƙuduri |
640 × 512 |
|||
|
Tsarin firam |
Daidaitacce, 6hz zuwa 30hz |
|||
|
Pixel tazara |
12μm |
|||
|
Amsa Maskand |
8μm zuwa 14μm |
|||
|
Raga |
≤ 40mk (@ 25 ° C), F # = 1.0 |
|||
|
Lens (tsayin daka) |
9.1mm |
15mm |
19mm |
25mm |
|
F lamba |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
IFV |
1.3Mag |
0.8Mar |
0.6Man |
0.48Mag |
|
Filin kallo (h × v) |
48.3 × 38.6 ° |
29.3 ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Mai da hankali |
2m |
5m |
7m |
8m |
|
Ma'aunin zafin jiki |
||||
|
Ranama |
- 20 ° C ~ 150 ° C & 100 ° C ~ 550 ° C |
|||
|
Daidaitaccen zazzabi |
Max (± 2 ° C, ± 2%) a zazzabi na yanayi 25 ° C da zazzabi sama da 0 ° C |
|||
|
Distancin zazzabi (dangane da 0.65 × 0.65m) |
10m (mafi girma) |
15m (mafi girma) |
20m (mafi girma) |
25m (mafi girma) |
|
Mulkin makulla |
3 Matsayi na zazzabi, dokoki 21 (maki 10, yankuna 10, da layin 1) |
|||
|
Kayan data |
16it na yawan zafin rana |
|||
|
Nunin hoto |
||||
|
Bambanta daidaitawa |
I |
|||
|
Daidaitawa mai haske |
I |
|||
|
Alkalami |
15 palettes na launi daidaitacce, tsoho farin zafi |
|||
|
FFC (Gyara Fita Filin Gyara) Yanayin |
Auto, Manual, Gyaran waje |
|||
|
Ɗan haƙa |
I |
|||
|
Na duka |
||||
|
Faifan kayan aiki |
USB2.0 FPC |
|||
|
Ƙarfi |
DC 5V ± 5% |
|||
|
Amfani da iko |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65w |
|
Rawar jiki & girgizawa |
Tsoro: Sinusidal girgizawa, 20 m / s ², 3 - Axis Matsa: Rabin Sine Waine, 30 g / 11 ms, 3 - Axis 6 - Hanya |
|||
|

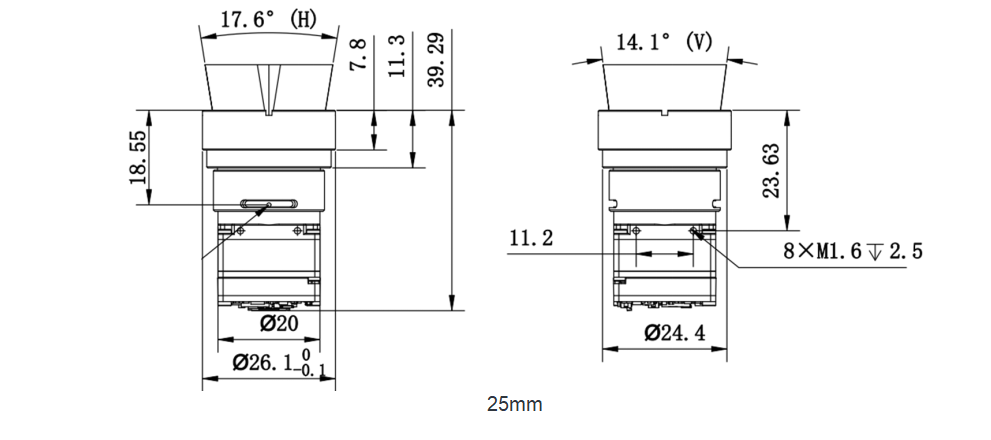

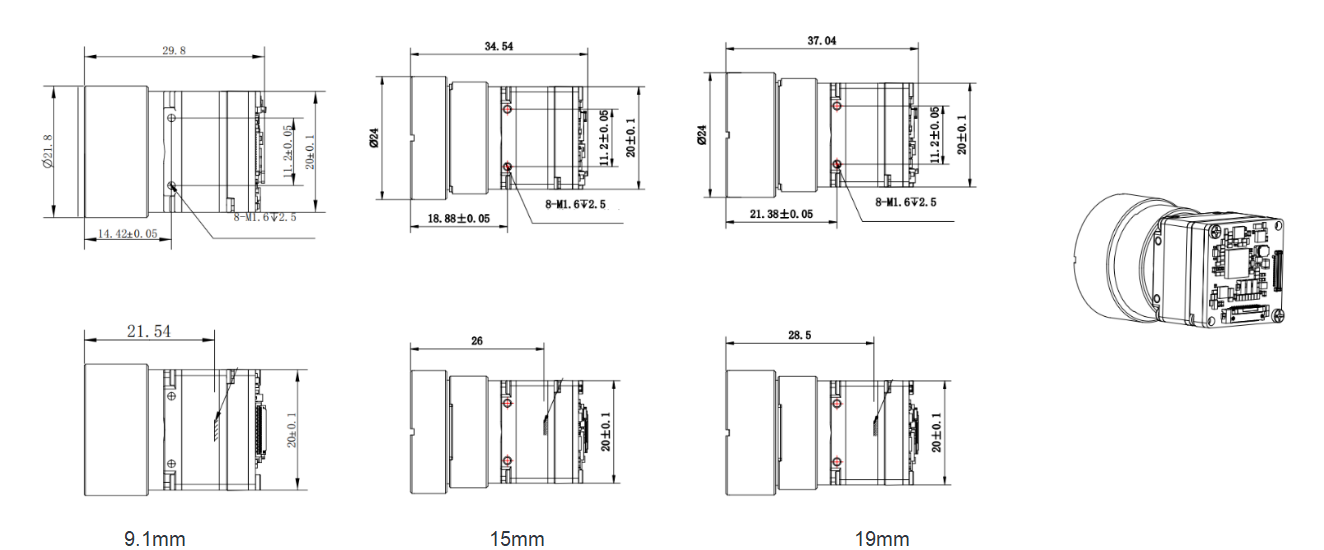

Girma (mm) |
29.8 * 20 * 20mm |
34.54 * 20m * 20mm |
37.04 * 20 * 20mm |
39.29 * 20m * 20mm |
|
Nauyi |
≤222g |
≤28g |
≤32g |
≤33g |
|
Aikin zazzabi |
- 40 ° C ~ 70 ° C |
|||
