12μm 640 × 512 USB (CVBS / Type - c / Mipi Zabi mai lamba

Lambar samfurin

SG - DTM06U (C, M) 2 - x

Sg - dtm06u (c, m) 2 - tx

Sg - dtm03u (c, m) 2 - x

Sg - dtm03u (c, m) 2 - tx

Sg - dtm0u (c) 2 - x

Sg - dtm02u (c) 2 - tx

Module na Thermal

Hoto na hoto

Uncooled vox microbolometer

Pixel tazara

12μm

Amsa Maskand

8μm zuwa 14μm

Max. Ƙuduri

640 × 512

384 × 228

256 × 192

Adireshin firam (FPS)

50

25

50

25

50

25

Lens (tsayin daka)

9.1 / 13 / 19mm

9.1 / 13mm

4/7 / 10mm

F lamba

F1.0 / F1.0 / F1.1 / F1.2

F1.0

F1.0

Filin kallo (h × v)

45.9 × 36.9 ° / 32.9 × 26.6 ° /

22.6 ° × 18.2 ° / 17.3 ° 13.8 °

28.7 ° 21 × 21.7 ° / 20.1 ° ° ° ° ° °

46.8 ° × 34.1 ° / 24.6 × 18.5 ° / 16.9 ° 12.8 °

Attement

N / a

Goya baya

N / a

Goya baya

N / a

Goya baya

Ma'aunin zafin jiki

Ranama

Lt yanayin: - 20 ° C ~ + 150 ° C; HT Yanayin: 0 ° C ~ + 550 ° C

Kuskuren aunawa

Max (± 2 ° C, ± 2%); Operating Hemp: - 20 ° C ~ + 50 ° C

Nunin hoto

Gyara hoto

Haske, bambanci, kaifi

Daki-daki, haɓakawa

Goya baya

Riba

Auto / Manual

Rage amo

2d / 3D

Jefa

Goya baya

Madubi

Goya baya

Pseudo - launi

18 palettes na launi daidaitacce

Shari

Nuna / bata / boye

Sarrafa hoto

Gyara Gyara, amo amo na dijital, dde

Video

Bayyanar bidiyo

UV / bt.656 / Mipi / lvds / cvs

UV / cvbs

Fadada ta dubawa

USB / Mipi / cvbs / nau'in - c

USB / cvbs / nau'in - c

Serial Sadarwa

UART Serial Port

Na duka

Ƙarfi

DC 4.5 ~ 5.5V; Cvbs: DC 4.5-20v

Amfani da iko

≤0.7w@25 digiri

≤0.7w@25 digiri

≤0.55w@25 dixc

Aikin zazzabi

- 40 ° C ~ 70 ° C

Zazzabi mai ajiya

- 40 ° C ~ 80 ° C

Aiki mai zafi

≤95% rh (ba - incasare ba)

Jin wutar lantarki

6.06G bazuwar, 3 - Axis, Sine Ka'idoji

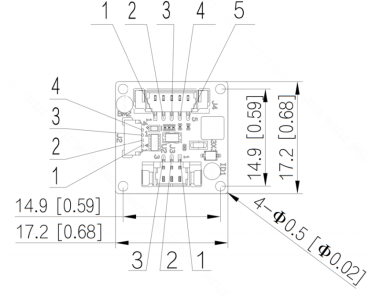

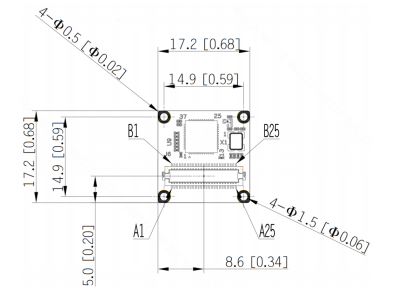

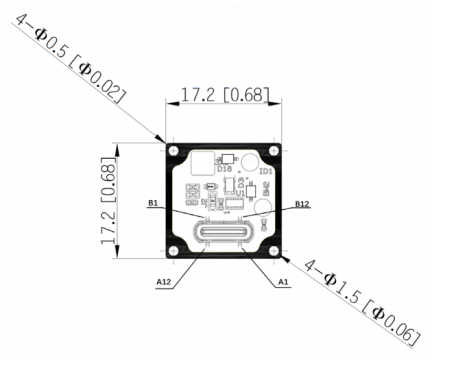

Gwadawa

17.3mm * 17.3mm * 10.8mm (ba tare da len sper ener zobe wutsiyar wutsiyar)

Nauyi

5g (ba tare da lens mai saukar da ruwan tabarau na ruwan tabarau ba)
