1000m nisa 808nm infrared module
Abin ƙwatanci | Sg - ir808 - 1k |
| Ingancin nesa | ≥1000m |
| Dabara | Eel (Edge Emitting Laser) |
| Igiyar ruwa | 808 ± 10nm, 980nm don zaɓi) |
| Inputer Power | ≤32w |
| Laser guntu Power | 10W |
| Powerarfin Wuta | 7 ~ 8w |
| Kusurwar Laser | Fata nesa 0.8 °, nesa mai tasiri> 1000m, Bamby tabo diamita |
| Kusa da kusurwa 30 °, nesa mai tasiri> 80m | |
| Yanayin sarrafawa | UART_TTL, Rs - 485, Manual |
| Kuntawa | Rs - 485, TTL232, Gudanar da Manufar |
| Protecol Sadarwa | Pelco - D (9600bps tsoho, 4800bps, 2400bps don zaɓi) |
| Yanayin aiki | Ci gaba |
| Rayuwar Ma'aikata | > 30000H |
| Inputer Power | DC12V ± 10%, 2.1A ± 0.2A |
| Yawan zafin jiki | - 35 ° C ~ + 55 ° C |
| Zazzabi mai ajiya | - 50 ° C ~ + 100 ° C |

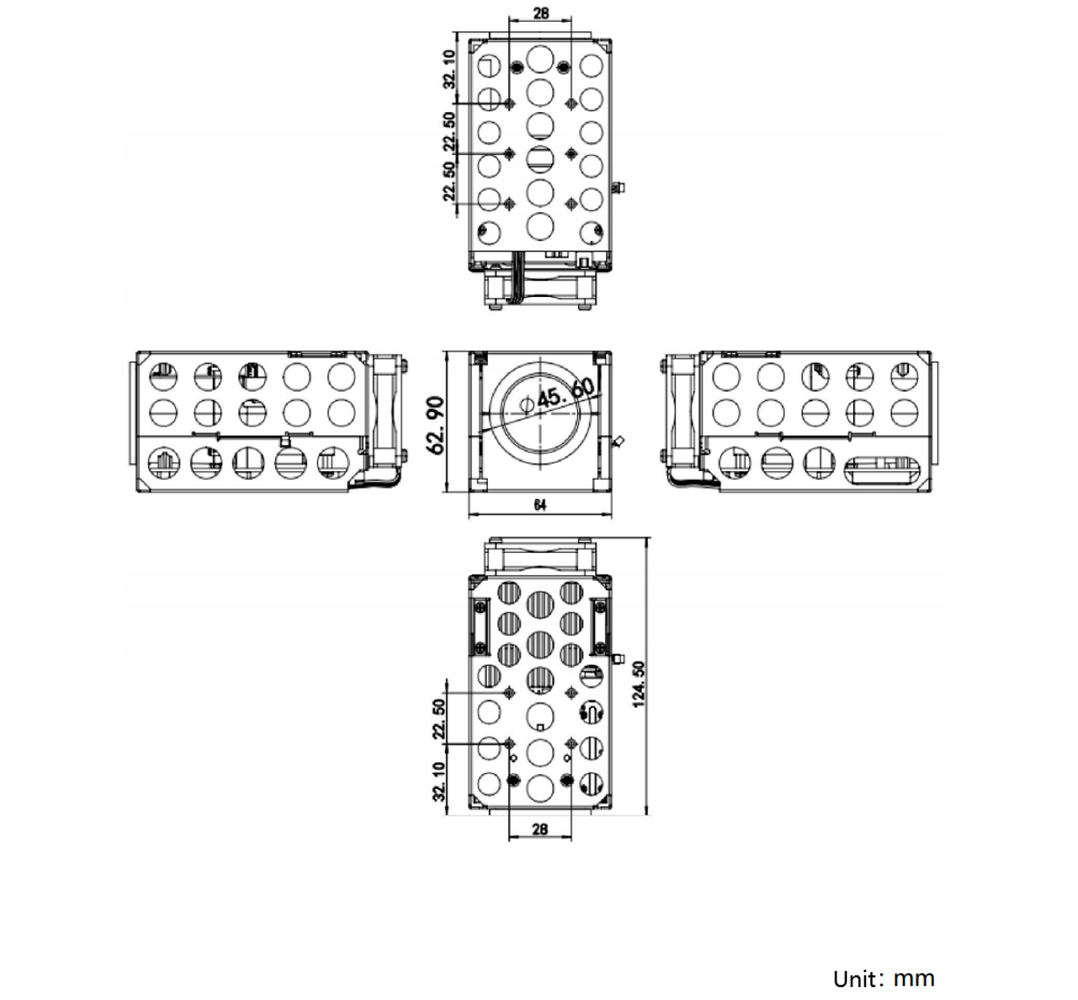

| Gwadawa | 125mmxx73mmxx64mm |
| Nauyi | 400g |
